CURT 60614 OEM-Style Gooseneck Hitch; Select Ram 2500

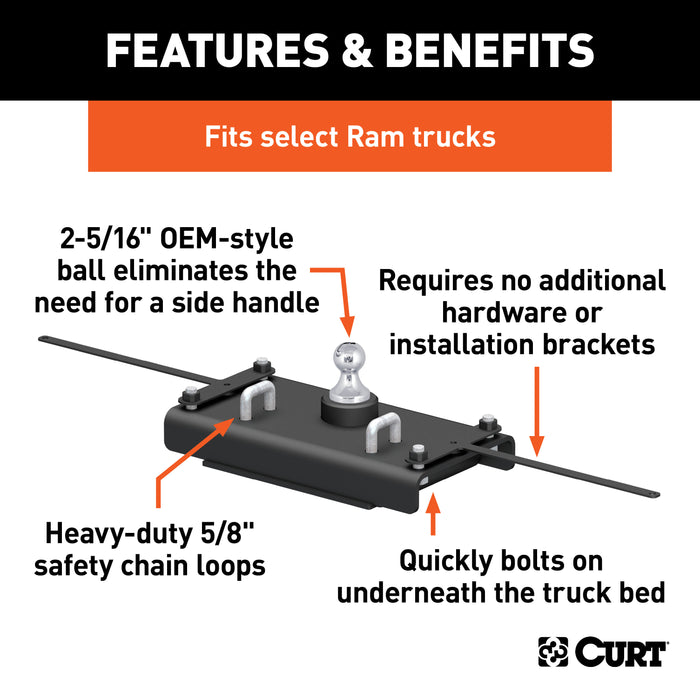

CURT OEM-style gooseneck hitches are built for specific pickup trucks to tackle big jobs. OEM-style hitches are unique because they do not require additional installation brackets. They bolt directly onto the vehicles frame and use pre-existing bolt holes to install in 45 minutes or less. They also require no welding, bed flange trimming or bed removal. This particular hitch is designed to fit specific years of the Ram 2500. Each OEM-style Ram hitch comes with a factory-style gooseneck ball and all the necessary hardware for a complete installation. This Ram OE gooseneck hitch offers a gross trailer weight capacity of 30,000 lbs. and a vertical load limit of 7,500 lbs. It is perfect for towing everything from farm animals in your livestock trailer to industrial materials on a flatbed (limited to lowest rated towing component). It comes with a patented 2-5/16" gooseneck trailer ball that can be installed and removed easily with a simple quarter-turn of the integrated lever. To ensure that this Ram gooseneck hitch has what it takes to keep up with you and your truck, it also comes with an A-coat finish for excellent rust resistance. It has heavy-duty 5/8" safety chain anchors for a reliable backup connection.

Resources

Installation Instructions

Ball Diameter	2-5/16 IN
Box Height in Inches - XA	0
Box Length in Inches - XA	0
Box Width in Inches - XA	0
Class ID	0
Description_ABR	GOOHT
Description_ASC	Assembled in USA
Description_ASC	Heavy-duty 5/8" safety chain loops for a reliable connection
Description_ASC	Included patented 2-5/16" ball eliminates the need for a side handle
Description_ASC	Installation also requires no welding, bed flange trimming or bed removal
Description_ASC	Limited lifetime warranty (one-year finish, one-year parts)
Description_ASC	No drilling necessary except the truck bed holes
Description_ASC	OEM-Style Gooseneck Hitch, Select Ram 2500
Description_ASC	Protected by a highly durable, rust-resistant, liquid A-coat
Description_ASC	Quickly bolts on underneath the truck bed in 45 minutes or less
Description_ASC	Requires no additional hardware or installation brackets
Description_ASC	Tested for safety in accordance with SAE J2638
Description_ASC	Up to 30,000 lbs. GTW and 7,500 lbs. vertical load
Description_ASC	Weight ratings are limited to vehicle manufacturer's stated capacities
Description_ASM	CURT 60614 Factory Original Equipment Style Gooseneck Hitch, 30,000 lbs. 2-5/16-Inch Ball, Fits Select Ram 2500
Description_DEF	Gooseneck Trailer Hitch
Description_DES	OEM-Style Gooseneck Hitch, Select Ram 2500
Description_DES	OEM-Style Gooseneck Hitch; Select Ram 2500
Description_EXT	CURT 60614 Factory Original Equipment Style Gooseneck Hitch, 30,000 lbs. 2-5/16-Inch Ball, Fits Select Ram 2500
Description_EXT	CURT 60614 Factory Original Equipment Style Gooseneck Hitch; 30;000 lbs. 2-5/16-Inch Ball; Fits Select Ram 2500

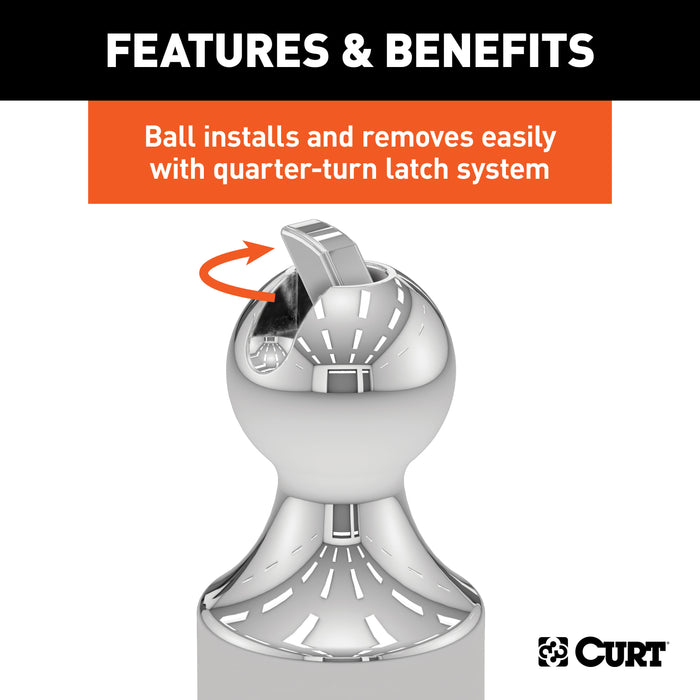

Description_FAB	2 5/16 In. Ball Installs Quickly w/1/4-Turn Latch-Locking System
Description_FAB	Accepts Up To 30000 Lbs. Tw And 7500 Lbs. Vertical Load Limit
Description_FAB	Assembled in USA
Description_FAB	Backed By A Limited Lifetime Warranty
Description_FAB	Co-Cured In A Rust-Resistant Liquid Bonderite Coating
Description_FAB	Incl. Heavy-Duty 5/8 In. Safety Chain Hookups
Description_FAB	Installation Requires No Welding Or Truck Bed Removal
Description_FAB	Protected By A Highly Durable Carbide Powder Coat Finish
Description_FAB	Quickly Bolts In From Underneath The Bed In 45 Minutes Or Less
Description_FAB	Requires No Additional Hardware Or Installation Brackets
Description_INV	OEM-Style Gooseneck Hitch for Ram 2500
Description_KEY	gooseneck hitch truck w square ball puck oem kit goose neck style replacement system fithwheel manufacturing hitches trailer mopar dodge 2014 2015 2016 2017 2018
Description_LAB	Made In Logo
Description_MKT	CURT OEM-style gooseneck hitches are built for specific pickup trucks to tackle big jobs. OEM-style hitches are unique because they do not require additional installation brackets. They bolt directly onto the vehicle's frame and use pre-existing bolt holes to install in 45 minutes or less. They also require no welding, bed flange trimming or bed removal. This particular hitch is designed to fit specific years of the Ram 2500. Each OEM-style Ram hitch comes with a factory-style gooseneck ball and all the necessary hardware for a complete installation. This Ram OE gooseneck hitch offers a gross trailer weight capacity of 30,000 lbs. and a vertical load limit of 7,500 lbs. It is perfect for towing everything from farm animals in your livestock trailer to industrial materials on a flatbed (limited to lowest rated towing component). It comes with a patented 2-5/16" gooseneck trailer ball that can be installed and removed easily with a simple quarter-turn of the integrated lever. To ensure that this Ram gooseneck hitch has what it takes to keep up with you and your truck, it also comes with an A-coat finish for excellent rust resistance. It has heavy-duty 5/8" safety chain anchors for a reliable backup connection.
Description_MKT	CURT OEM-style gooseneck hitches are built for specific pickup trucks to tackle big jobs. OEM-style hitches are unique because they do not require additional installation brackets. They bolt directly onto the vehicles frame and use pre-existing bolt holes to install in 45 minutes or less. They also require no welding, bed flange trimming or bed removal. This particular hitch is designed to fit specific years of the Ram 2500. Each OEM-style Ram hitch comes with a factory-style gooseneck ball and all the necessary hardware for a complete installation. This Ram OE gooseneck hitch offers a gross trailer weight capacity of 30,000 lbs. and a vertical load limit of 7,500 lbs. It is perfect for towing everything from farm animals in your livestock trailer to industrial materials on a flatbed (limited to lowest rated towing component). It comes with a patented 2-5/16" gooseneck trailer ball that can be installed and removed easily with a simple quarter-turn of the integrated lever. To ensure that this Ram gooseneck hitch has what it takes to keep up with you and your truck, it also comes with an A-coat finish for excellent rust resistance. It has heavy-duty 5/8" safety chain anchors for a reliable backup connection.
Description_SHO	OEM-Style Gooseneck
Description_SLA	CURT OEM-style gooseneck hitches are built for specific pickup trucks to tackle big jobs. OEM-style hitches are unique because they do not require additional installation brackets. They bolt directly onto the vehicle's frame and use pre-existing bolt holes to install in 45 minutes or less. They also require no welding, bed flange trimming or bed removal. This particular hitch is designed to fit specific years of the Ram 2500. Each OEM-style Ram hitch comes with a factory-style gooseneck ball and all the necessary hardware for a complete installation. This Ram OE gooseneck hitch offers a gross trailer weight capacity of 30,000 lbs. and a vertical load limit of 7,500 lbs. It is perfect for towing everything from farm animals in your livestock trailer to industrial materials on a flatbed (limited to lowest rated towing component). It comes with a patented 2-5/16" gooseneck trailer ball that can be installed and removed easily with a simple quarter-turn of the integrated lever. To ensure that this Ram gooseneck hitch has what it takes to keep up with you and your truck, it also comes with an A-coat finish for excellent rust resistance. It has heavy-duty 5/8" safety chain anchors for a reliable backup connection.
Finish - XA	A-COAT
Gooseneck Hitch Type	OEM Compatible
Gross Trailer Weight (GTW)	30,000 LB
height	7.25
Item Class - XA	OMF
Item Height - XA	4.380
Item Length - XA	18.000
Item Width - XA	9.940
length	21.25
LTL	N
Parcel Allowed - XA	Yes
Product Weight - XA	49.600
Rate Class - XA	70.0
Retail Height - XA	7.250
Retail Length - XA	21.250
Retail Width - XA	11.250
Shipping Weight - XA	50.600
Tariff 301 - XA	No
Title	OEM-Style Gooseneck Hitch, Select Ram 2500
Tongue Weight (TW)	7,500 LB
Vertical Load	7,500 LB
Warranty	Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
weight	50.6
width	11.25
