CURT 16688 Q24 5th Wheel Slider Hitch; Select Ram 2500; 3500; 6.5ft. Bed Puck System

With a gross trailer weight capacity of 24,000 lbs., the CURT Q24 5th wheel hitch is capable of towing some of the heaviest 5th wheel trailers, while still offering a smooth, quiet ride. Instead of pivoting of two axes, the Q24 is built with a spherical bearing that allows the hitch head to pivot in virtually any direction. This means smoother turns, a quieter ride and less strain on your towing equipment and truck. The Q24 also features dual-locking jaws for 360-degree kingpin contact and three grease fittings for continuous lubrication. The Q24 5th wheel hitch also makes coupling easier with its self-aligning head, single-handle operation and three-position coupling indicator. The self-aligning head helps reduce errors when backing up to the kingpin. This 24K 5th wheel hitch comes with the CURT R24 roller and Ram puck system 5th wheel roller adapter. It is designed to be mounted on a Ram short-bed pickup with the truck bed puck system. Using a set of quarter-turn anchors, the adapter quickly and easily drop into the pucks, instantly mounting the Q24 hitch and roller and equipping the truck for 5th wheel towing. Once installed, the roller allows for added clearance when making tight turns with your trailer. CURT 5th wheel rollers are true rolling units, meaning they actually roll on wheels that bear the weight of the trailer rather than simply sliding on hollow rods as seen in competitive models. With a thick operating handle, the roller smoothly rolls the 5th wheel head forward and back, locking securely into each position as desired. CURT rollers also provide up to 12" of displacement as well, unlike the more common 10", to give you a wide range of motion and plenty of space to get your RV or other 5th wheel trailer around any turn. Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards.

Box Height in Inches - XA	0
Box Length in Inches - XA	0
Box Width in Inches - XA	0
Class ID	0
Description_ABR	25K
Description_ASC	Adjustable anchors to eliminate chucking between the legs and puck system
Description_ASC	Dual jaws fully wrap the kingpin to reduce chucking and increase security

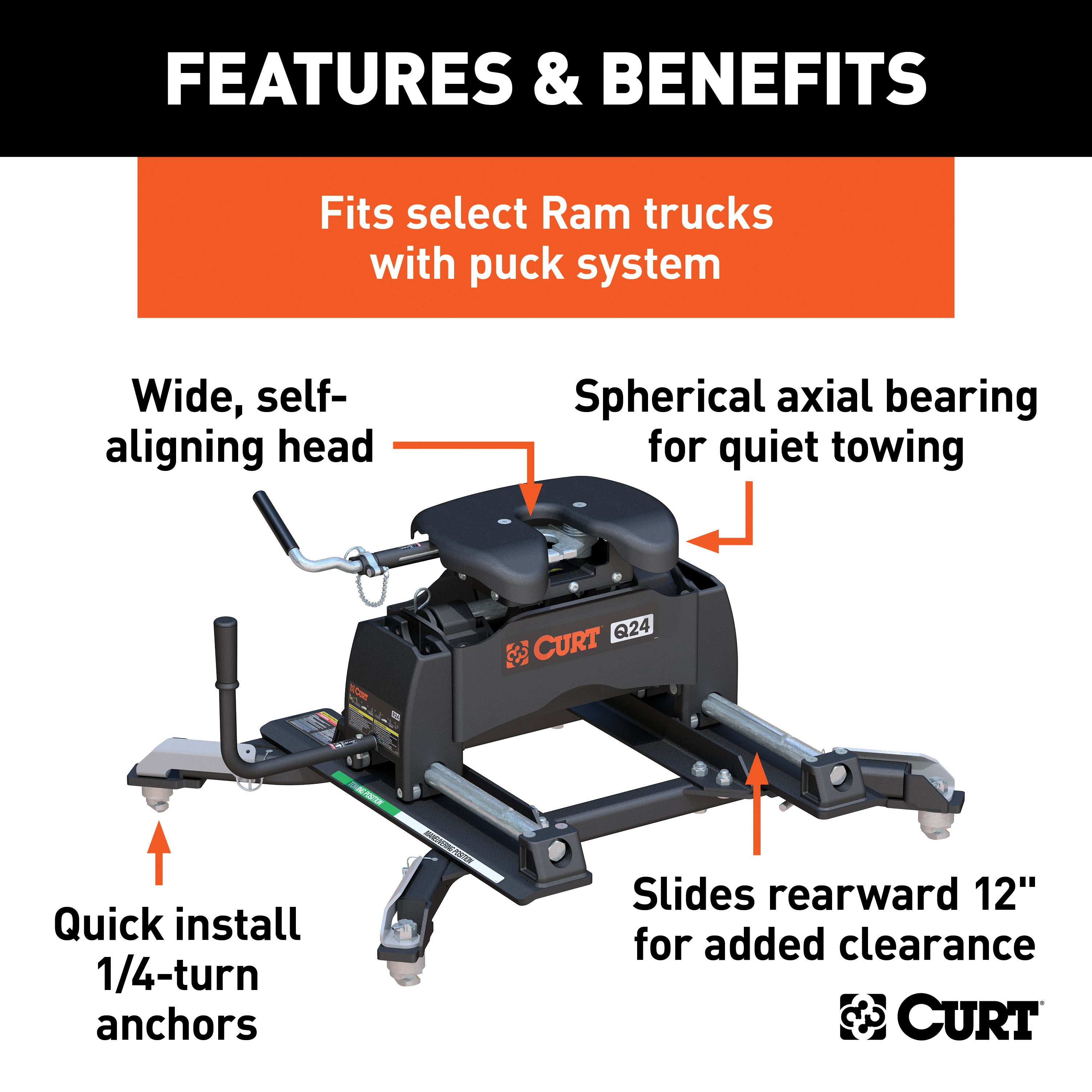

Description_ASC	Fits Ram short-bed pickups with the OEM truck bed puck system
Description_ASC	Includes a polyethylene lube plate to eliminate messy grease deposits
Description_ASC	Limited lifetime warranty (one-year finish, one-year parts)

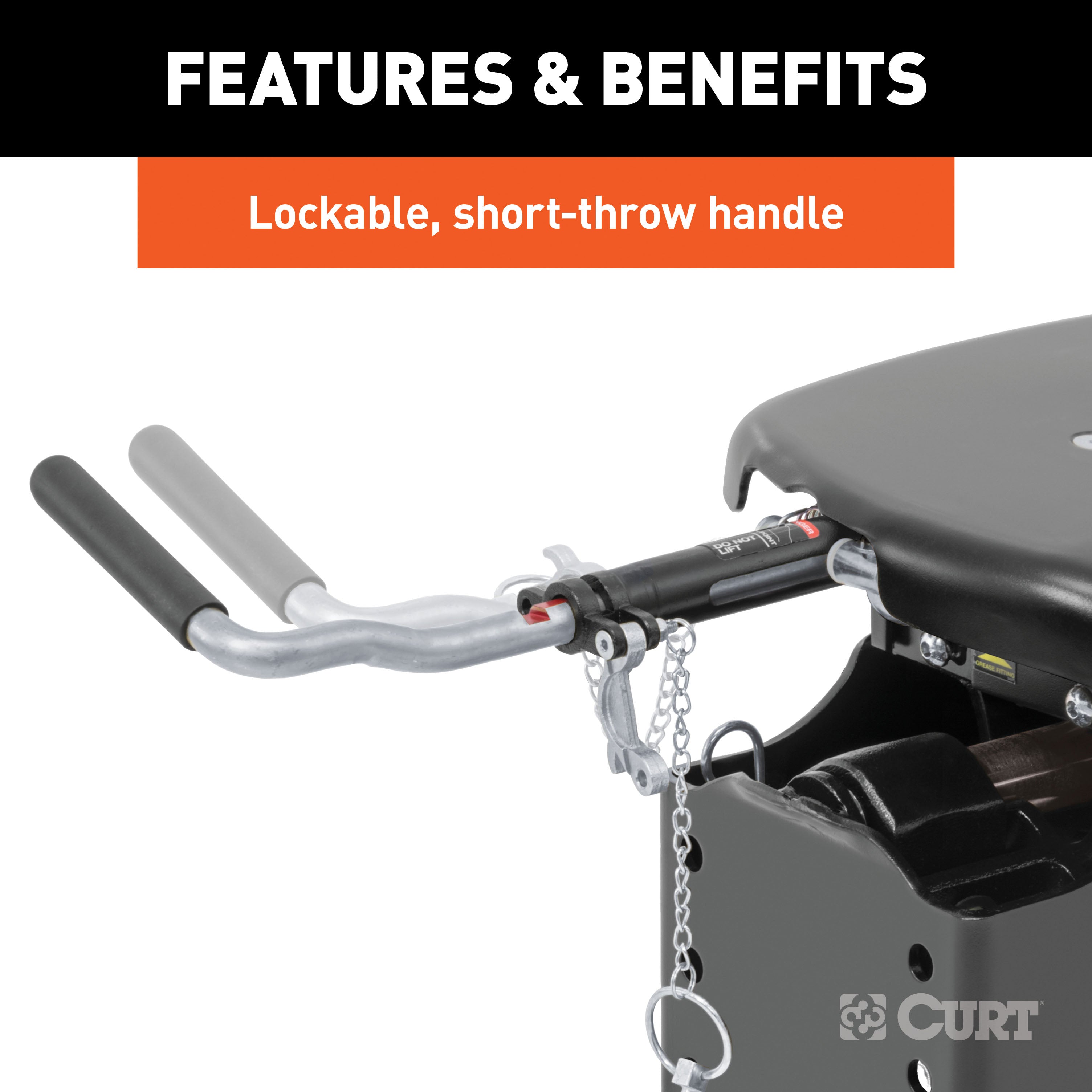

Description_ASC	Lockable, short-throw handle automatically engages with the kingpin
Description_ASC	Offers three height adjustment positions to adapt to each unique truck bed
Description_ASC	Protected by a highly durable carbide powder coat finish
Description_ASC	Q24 5th Wheel Slider Hitch, Select Ram 2500, 3500, 6.5' Bed Puck System

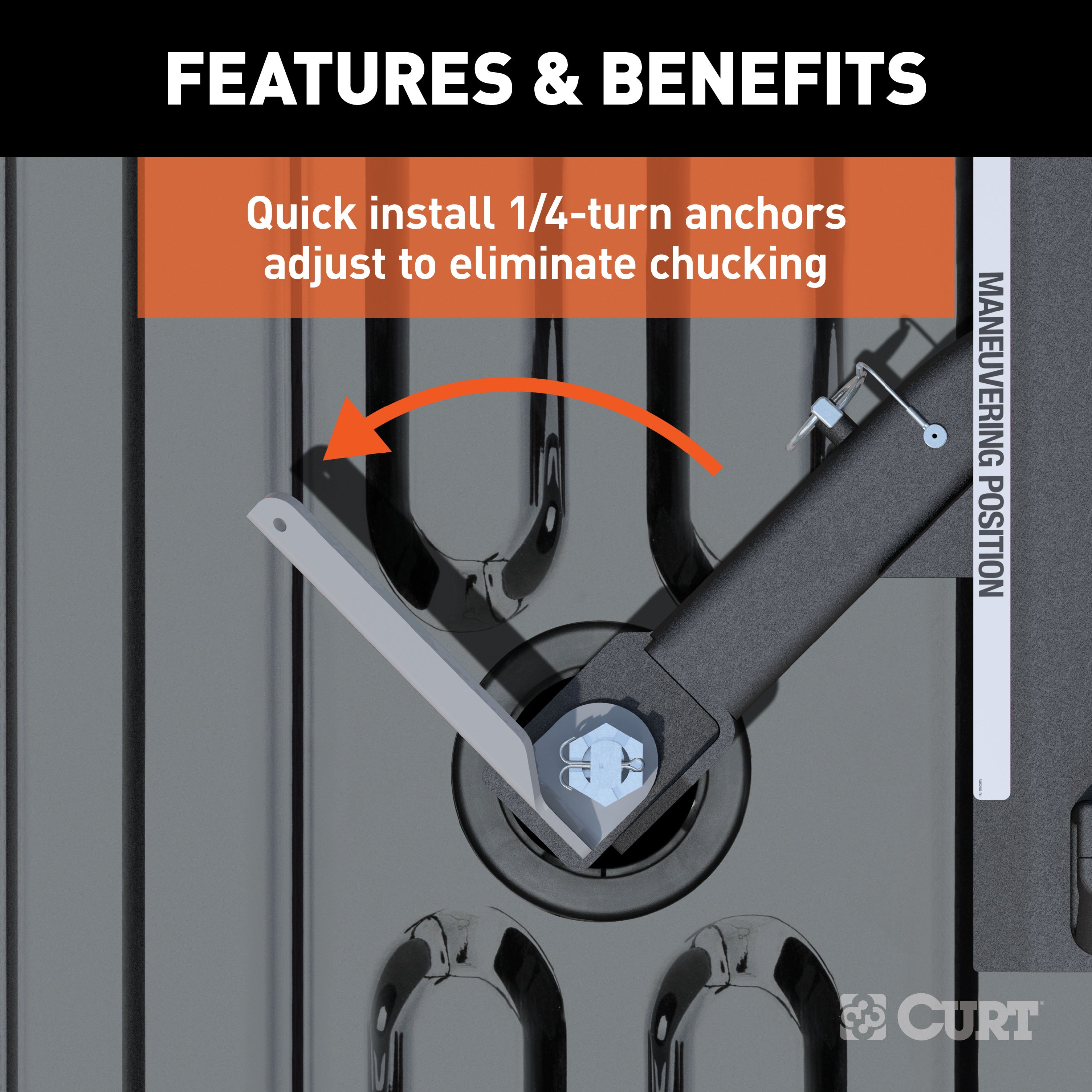

Description_ASC	Quarter-turn anchoring system provides quick installation and removal
Description_ASC	R24 5th wheel roller #16570 provides 12" of travel in the truck bed
Description_ASC	Rolls on wheels and solid, non-binding rods to be a true rolling unit
Description_ASC	Spherical axial bearing tilts head in any direction for a smooth, quiet ride
Description_ASC	Tested for safety in accordance with SAE J2638
Description_ASC	Three easy-access grease fittings for lubrication

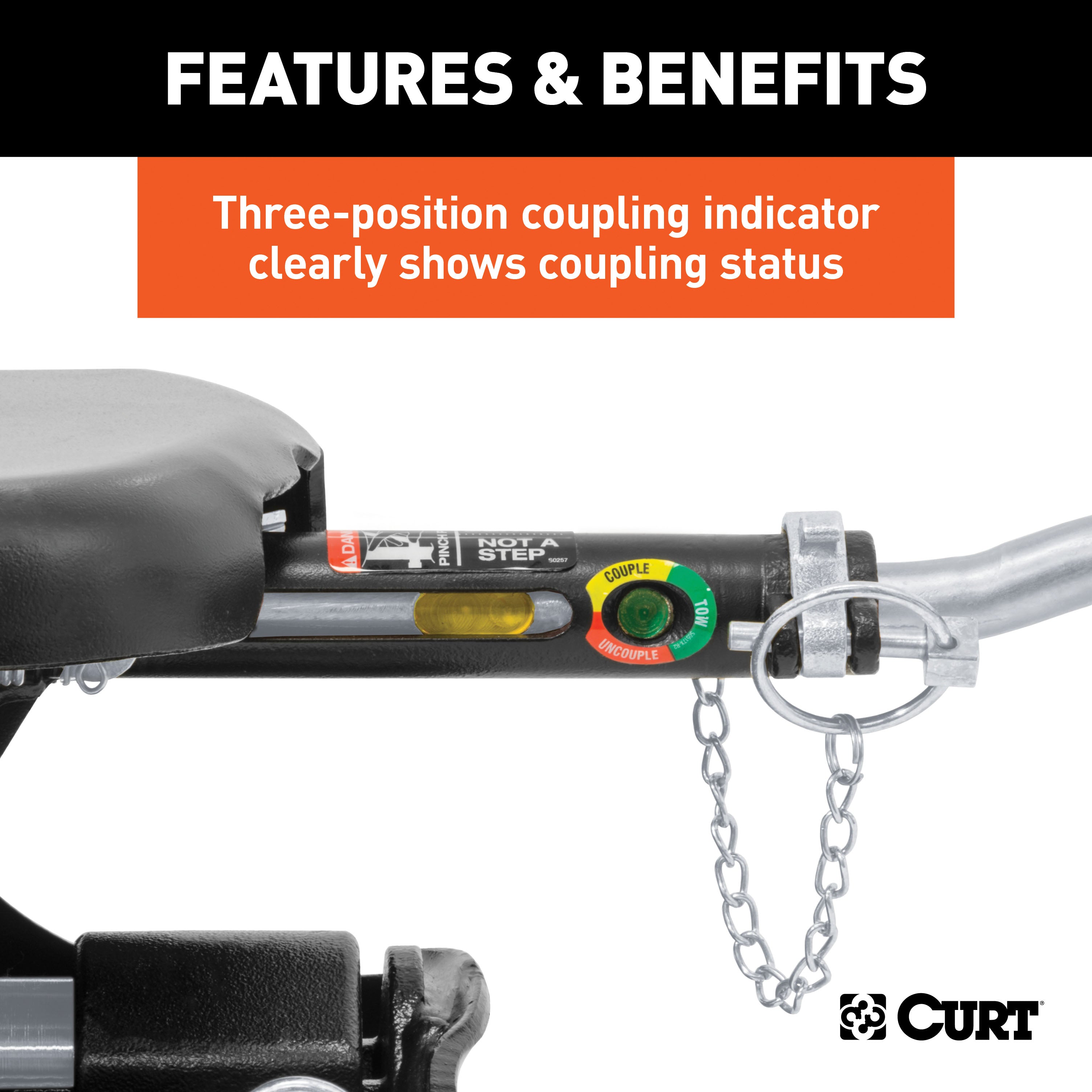

Description_ASC	Three-position coupling indicator clearly shows coupling status
Description_ASC	Wide, self-aligning head helps eliminate errors when backing up to the trailer
Description_ASM	CURT 16688 Q24 5th Wheel Slider Hitch, 24,000 lbs, Select Ram 2500, 3500, 6.5-Foot Bed Puck System
Description_DEF	Fifth Wheel Trailer Hitch Head Unit
Description_DES	Q24 5th Wheel Slider Hitch, Select Ram 2500, 3500, 6.5' Bed Puck System
Description_DES	Q24 5th Wheel Slider Hitch; Select Ram 2500; 3500; 6.5ft. Bed Puck System
Description_EXT	CURT 16688 Q24 5th Wheel Slider Hitch, 24,000 lbs, Select Ram 2500, 3500, 6.5-Foot Bed Puck System
Description_EXT	CURT 16688 Q24 5th Wheel Slider Hitch; 24;000 lbs; Select Ram 2500; 3500; 6.5-Foot Bed Puck System
Description_FAB	Backed By A 10-Year Limited Warranty
Description_FAB	Dual Jaws Fully Wrap Kingpin To Reduce Chucking/Increase Security
Description_FAB	Fits Ram Short-Bed Pickups w/OEM Truck Bed Puck System
Description_FAB	Lockable Short-Throw Handle Automatically Engages w/Kingpin
Description_FAB	Offers 3 Height Adjustment Positions To Adapt To Every Truck Bed
Description_FAB	Provides 12 in. Of Travel In The Truck Bed
Description_FAB	Quarter-Turn Anchoring System Provides Quick Installation/Removal
Description_FAB	Rolls On Wheels/Solid Non-Binding Rods To Be A True Rolling Unit
Description_FAB	Spherical Axial Bearing Head For A Smooth Quiet Ride
Description_FAB	Three Easy-Access Grease Fittings For Lubrication
Description_FAB	Three-Position Coupling Indicator Clearly Shows Coupling Status
Description_FAB	Wide Self-Aligning Head Reduces Errors When Backing Up To Trailer
Description_INV	Q24 5th Wheel with Ram Puck Roller
Description_KEY	fifth 5 system kingpin head receiver articulating cam trailer pivoting bushing factory tow wheels rv gooseneck release handle rails towing front hitches back 24000 2013 2014 2015 2016 2017 2018 2019 2020
Description_MKT	With a gross trailer weight capacity of 24,000 lbs., the CURT Q24 5th wheel hitch is capable of towing some of the heaviest 5th wheel trailers, while still offering a smooth, quiet ride. Instead of pivoting of two axes, the Q24 is built with a spherical bearing that allows the hitch head to pivot in virtually any direction. This means smoother turns, a quieter ride and less strain on your towing equipment and truck. The Q24 also features dual-locking jaws for 360-degree kingpin contact and three grease fittings for continuous lubrication. The Q24 5th wheel hitch also makes coupling easier with its self-aligning head, single-handle operation and three-position coupling indicator. The self-aligning head helps reduce errors when backing up to the kingpin. This 24K 5th wheel hitch comes with the CURT R24 roller and Ram puck system 5th wheel roller adapter. It is designed to be mounted on a Ram short-bed pickup with the truck bed puck system. Using a set of quarter-turn anchors, the adapter quickly and easily drop into the pucks, instantly mounting the Q24 hitch and roller and equipping the truck for 5th wheel towing. Once installed, the roller allows for added clearance when making tight turns with your trailer. CURT 5th wheel rollers are true rolling units, meaning they actually roll on wheels that bear the weight of the trailer rather than simply sliding on hollow rods as seen in competitive models. With a thick operating handle, the roller smoothly rolls the 5th wheel head forward and back, locking securely into each position as desired. CURT rollers also provide up to 12" of displacement as well, unlike the more common 10", to give you a wide range of motion and plenty of space to get your RV or other 5th wheel trailer around any turn. Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards.
Description_SHO	Q24 5th Wheel Hitch
Description_SHO	Q24 5th Wheel Slider
Description_SLA	With a gross trailer weight capacity of 24,000 lbs., the CURT Q24 5th wheel hitch is capable of towing some of the heaviest 5th wheel trailers, while still offering a smooth, quiet ride. Instead of pivoting of two axes, the Q24 is built with a spherical bearing that allows the hitch head to pivot in virtually any direction. This means smoother turns, a quieter ride and less strain on your towing equipment and truck. The Q24 also features dual-locking jaws for 360-degree kingpin contact and three grease fittings for continuous lubrication. The Q24 5th wheel hitch also makes coupling easier with its self-aligning head, single-handle operation and three-position coupling indicator. The self-aligning head helps reduce errors when backing up to the kingpin. This 24K 5th wheel hitch comes with the CURT R24 roller and Ram puck system 5th wheel roller adapter. It is designed to be mounted on a Ram short-bed pickup with the truck bed puck system. Using a set of quarter-turn anchors, the adapter quickly and easily drop into the pucks, instantly mounting the Q24 hitch and roller and equipping the truck for 5th wheel towing. Once installed, the roller allows for added clearance when making tight turns with your trailer. CURT 5th wheel rollers are true rolling units, meaning they actually roll on wheels that bear the weight of the trailer rather than simply sliding on hollow rods as seen in competitive models. With a thick operating handle, the roller smoothly rolls the 5th wheel head forward and back, locking securely into each position as desired. CURT rollers also provide up to 12" of displacement as well, unlike the more common 10", to give you a wide range of motion and plenty of space to get your RV or other 5th wheel trailer around any turn. Certain turret-style pin boxes, such as Sidewinder, are not compatible with CURT Q-series hitches and should not be used as they may create vehicle / trailer handling hazards.
finish	Carbide Black Powder Coat
Finish - XA	CARBIDE BLACK POWDER COAT
Gross Trailer Weight	24000 lbs.
Gross Trailer Weight (GTW)	24,000 LB
height	15.0
Installation Height	19 IN - 23 IN
Item Class - XA	OBS
Item Height - XA	0.000
Item Length - XA	0.000
Item Width - XA	0.000
length	45.75
LTL	N
Parcel Allowed - XA	No
Product Weight - XA	0.000
Rate Class - XA	70.0
Retail Height - XA	15.000
Retail Length - XA	45.750
Retail Width - XA	18.000
Shipping Weight - XA	336.200
Tariff 301 - XA	Yes
Title	Q24 5th Wheel Slider Hitch, Select Ram 2500, 3500, 6.5' Bed Puck System
Vertical Load	6,000 LB
WARNING CA Proposition 65	No
Warranty	Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
weight	336.2
width	18.0
